Application：

■  Apply to all deep and shallow drawing process, and can be used for blanking， bending, flanging process.

■  Especially for the following areas: large cars, agricultural vehicles covering parts and other spare parts， and  tractor, motorcycle, aviation areas.



Product Features：

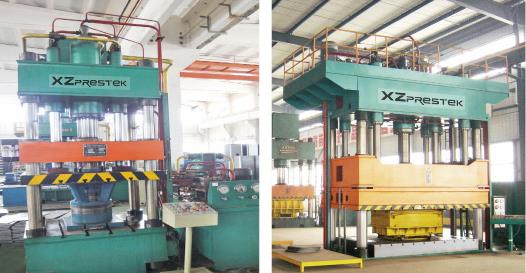

 ■  Four-column type structure is simple, economic and practical.

 ■  Adopt cartridge valve integrated hydraulic control system, ensure reduce the leakage points, reliable operation, and long service of life.

 ■  Automatic guide rail lubricating device.

 ■   PLC control the electrical system  and compact structure, ensure sensitive, reliable and flexible.

■  Working pressure and stroke can be adjusted according to the technological requirements within the prescribed scope, ensure easy operation.

■  Can realize the fixed pressure  and fixed stroke technology , with functions of  pressure hold and time delay , and delay time can be adjustable.

■  Drawing slider and blankholder slider can be consolidate as one block by positioning pin, realize the single action hydraulic press technology .

■  Adopt centralized control button, three operation modes of adjustment, manual and semi-automatic



Optional Configuration :

 ■  Movable Bolster

 ■  Blanking buffer device

 ■   Photoelectric protection device

 ■  Knock-out Device

 ■  PLC

 ■   Mould heating and temperature control device.

 ■    Industrial Touch displays

 ■    Heating and cooling device in the hydraulic system.

 ■  Digital display for stroke, pressure, speed, and numerical control device.

 ■   Knock out device, holder pressure slider , hydraulic Cushion equip with pressure adjustable device.
