Product Features :
■ This machine is suitable for the drawing process of sheet metal, the pressing process of plastic material, and the forming technology, also suitable for the drawing, blanking, stamping , bending and straightening process for other metal products.
■ The machine has independent power mechanism and electrical system. Adopt PLC automatic control, and can achieve inching, semi-automatic two operating modes.
■ The working pressure, pressing speed and stroke length of the machine can be adjusted according to the process needs. When working, the slider can be static at any position.
■ Hydraulic system adopts cartridge valve block, simple and compact structure, sensitive and reliable action, easy to diagnose and eliminate the faults.
Configuration :
■ Hydraulic drawing cylinder cushion
■ Damping anti-viberation oil cylinder cushion
■ Servo control system-motor/pump
■ CNC bolster machining
■ Electricity oil chiller
■ PLC + touch screen
■ Pressure sensor +Displacement sensor
■ The piston rods are quenched and chrome plated
■ The cylinder is an integral forging structure, and the piston rod and guide rails are forgings .
■ Lubricating device
■ Photoelectric protection
■ Mold Area lights
■ Quick mold Change System

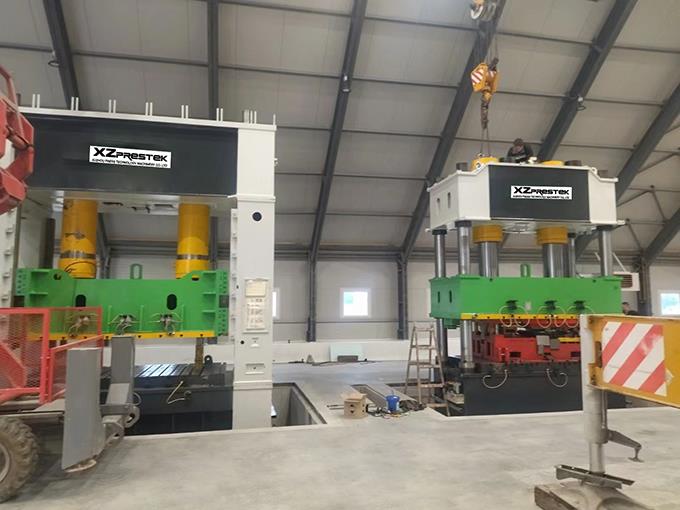

SERVO 630 TON HYDRAULIC PRESS
- Table size: H frame 3000 x 1600 mm / 4-column 2600 x 1500 mm
- With hydraulic
drawing cushion
- With Damping cushion
* Provide Customized Personalized Service
| Technical Parameters | Unit | Y27K-630 | Y27 - 630 | ||
| Structure Type | / | H frame | 4- column | ||
| Nominal pressure | KN | 6300 | 6300 | ||
| Slider return force | KN | 600 | 600 | ||
| Maximum working pressure of the liquid | MPa | 25 | 25 | ||
| Opening height | mm | 1500 | 1500 | ||
| Slide stroke | mm | 900 | 900 | ||
| Table size | L - R | mm | 3000 | 2600 | |
| L - R | mm | 1600 | 1500 | ||
|
Slider travel speed (servo control ) |
Fast downward | mm/s | 260-300 | 260-300 | |
| working -1 | mm/s |
30 （* 40% pressure ） |
30 （* 40% pressure ） |
||
| working -2 | mm/s |
12 （*100% pressure） |
12 （*100% pressure） |
||
| Return | mm/s | 280 | 280 | ||
| Hydraulic drawing cushion | Drawing force | KN | 1500 | 1500 | |
| Ejection stroke | mm | 300 | 300 | ||
| Size of cushion | L-R | mm | 2200 | 1900 | |
| F-B | mm | 1000 | 1000 | ||
| Ejection speed | mm/s | 90 | 90 | ||
| Return speed | mm/s | downward with slider | downward with slider | ||
| Jacking hole arrangement of table | L-R | mm | 150 x 15 rows | 150 x 13 rows | |
| F-B | mm | 150 x 7 lines | 150 x 7 lines | ||
| Diameter of hole | mm | ∮40 | ∮40 | ||
| Damping cushion | Damping force | KN | 1500 x 2 (One on each side) | 1500 x 2 (One on each side) | |
| Damping point adjustable stroke | mm | 50 | 50 | ||
| Damping point adjustable stroke | mm | 300 | 300 | ||
| Main motor power (approx.) | KW | Around 75 | Around 75 | ||
