Application and Features :

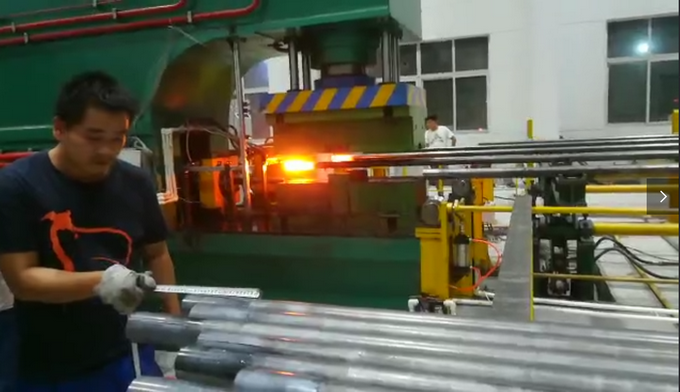

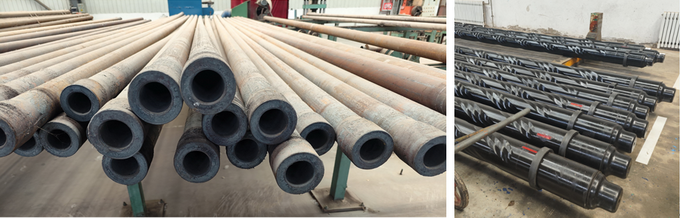

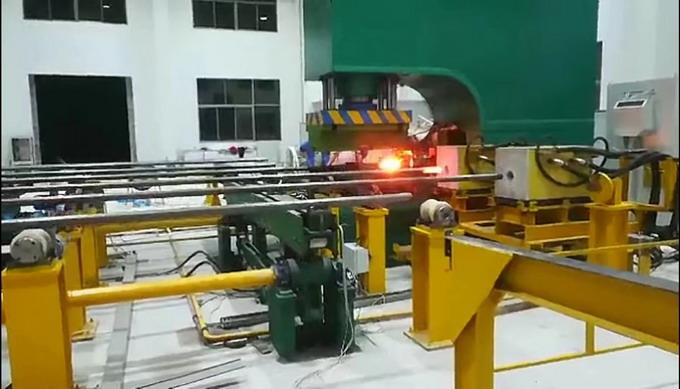

■ Pipe end thickening unit is mainly suitable for the thickening process of drill pipe or oil pipe.
■ The purpose of upsetting is mainly to ensure the strength of the steel pipe which at the end of the wire processing section or the strength of the welded surface.
■ The types of steel pipe upsetting are: external upsetting , internal upsetting, internal and external upsetting.
* Customer Customized Case
* Provide Customized Personalized Service
No.
Item
Unit
PEU- 8000 /4000
1
Nominal
force
KN
8000/4000
2
Maximum
working pressure of liquid
MPa
25
3
Closing
(Vertical ) cylinder pressure
KN
8000
4
Upsetting
(horizontal ) cylinder pressure
KN
4000
5
Stroke
of Closing (Vertical ) cylinder
mm
500
6
Upsetting
(horizontal ) cylinder cylinder stroke
mm
800
7
Closing (Vertical ) cylinder
speed
Quick
downward
mm/s
250
Working
(Pressing )
mm/s
50
Return
mm/s
150
8
Upsetting (horizontal) cylinder speed
None
load
mm/s
300
Upsetting
mm/s
130
Return
mm/s
200
9
Throat Depth
mm
1000
10
Main motor power approx
kW
660
