XPD Series Single-crank Press 80ton~315ton
XPD Series Single-crank Press 80ton~315ton
  • Details
  • Parameter
  • Images

 Video Link:

https://www.youtube.com/watch?v=WfnoEEqnv5I

Product Features:

■ With high rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.

■ Consistent driving center and machine center to guarantee accurate and stable punching.

■ In order to guarantee relative stationarity of machine operation, it is equipped with two balancers.

■ Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.

■ Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.

■ Adopt highly sensitive and reliable clutch/brake and internationally top duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.

■ Machine’s structural design shall be reasonable, for the convenience of realizing automatic production, reducing cost, and improving efficiency.

■ Possess advanced design concepts, low noise, low consumption, and energy saving.



Standard Configuration:

■ Inverter

■ Hydraulic overload protector

■ Electric slider adjusting device

■ Electric moulding-height indicator

■ Slider and mould balancing device

■ Misfeed detection consent

■ Power socket

■ Rotary cam switch

■ Crank angle indicator

■ Counter

■ Air source connector

■ Over-run safety device

■ Maintenance tool and tool box

■ Operating manual



Optional Configuration:

■ Auto grease pump device

■ Air die cushion device

■ Preset counter

■ Preset counter

■ Foot switch

■ Quick die change device (Die lifter, die clamper, or mould-shift arm)

■ Knock out device on the slider

■ Anti-vibration foot

■ Photo-electric safety device

■ Feeder (air, machinery, NC,and servo )

■ Feeding rack

■ Leveller

■ Manipulator (Bar Feeder )

■ Die Room Light

■ Left (right) feeding device

■ PAC100 control system

■ Man-machine control system

* Provide Customized Personalized Service

Name

Unit

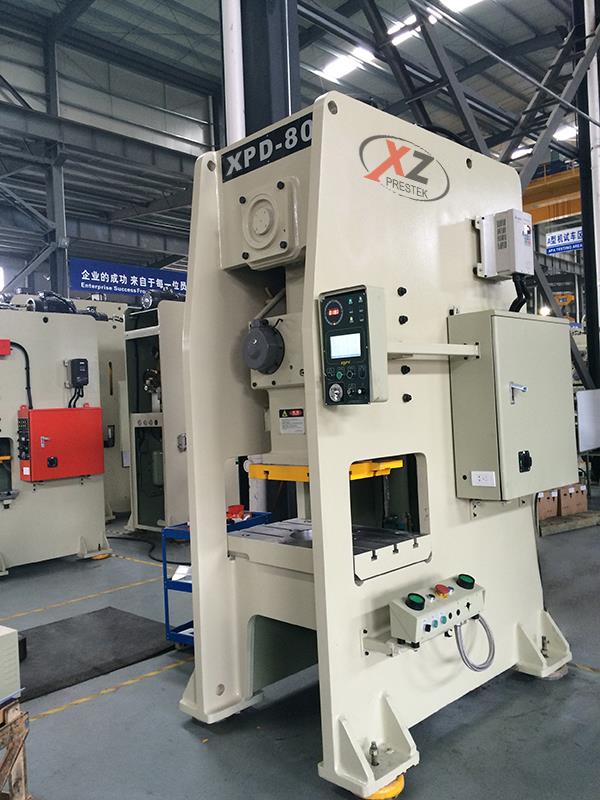

XPD-80

XPD-110

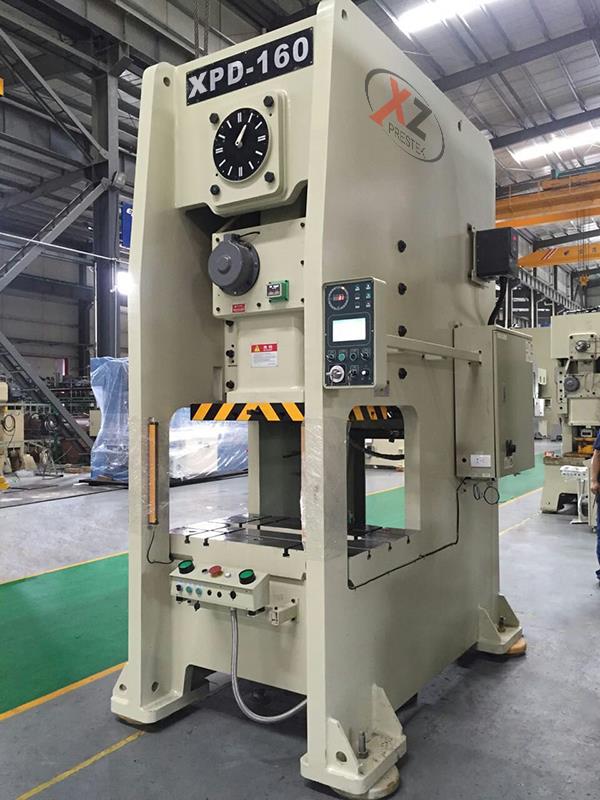

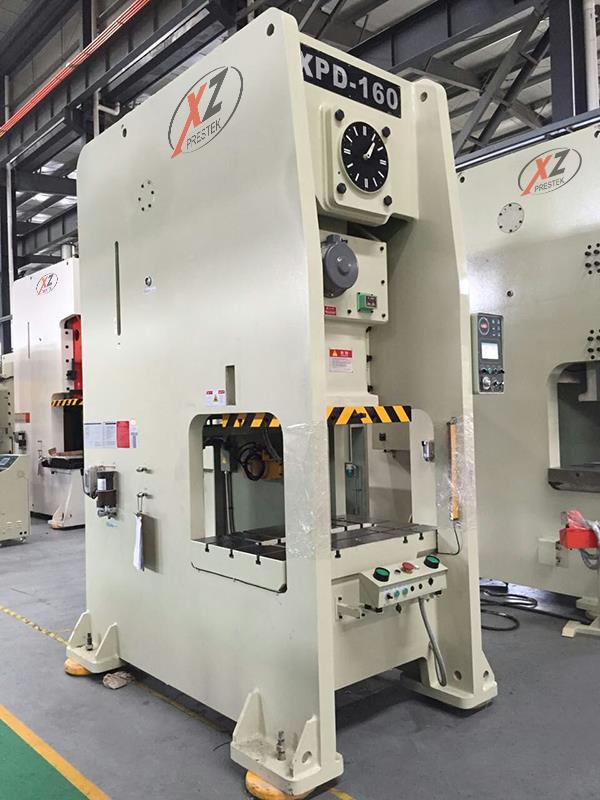

XPD-160

Model



V

H

V

H

V

H

Capacity

Ton

80

110

160

Rated Tonnage Point

mm

4

2

6

3

6

3

Stroke

mm

150

70

180

80

200

90

Die Height

mm

340

380

360

410

460

510

Stroke per Minute

s.p.m

35-80

80-120

30-60

60-90

20-50

40-70

Slide Adjustment

mm

80

80

100

Slide Area

mm

560x420x70

650x470x80

700x550x90

Bolster Area

mm

760x550x90

900x600x110

980x880x140

Main Motor

kwxp

7.5x4

11x4

15x4

Slide Adjust Device

HP

Electrical driving

Air Pressure

kg/cm2

6

6

6

Presses Dimension

mm

1300x1890x3000

1420x1985x3200

1600x2200x3500

Presses Weight

Ton

7.8

10.5

17.8

Presses Precision



GB(JIS)1 class

GB(JIS)1 class

GB(JIS)1 class

Die Cushion Capacity

Ton

3.6

6.3

10

Stroke

mm

70

80

80

Die Cushion Effective Area

mm2

450x310

500x350

650x420

 XPD-200ton--315ton

Name

Unit

XPD-200

XPD-260

XPD-315

Model



V

H

V

H

V

H

Capacity

Ton

200

260

315

Rated Tonnage Point

mm

6

3

7

3.5

7

3.5

Stroke

mm

200

100

250

150

280

170

Die Height

mm

460

510

500

550

550

600

Stroke per Minute

s.p.m

20-50

50-70

20-40

40-50

20-35

30-50

Slide Adjustment

mm

110

120

120

Slide Area

mm

850x630x90

950x700x100

1000x750x110

Bolster Area

mm

1140x820x160

1500x840x180

1600x900x200

Main Motor

kwxp

18x4

22x4

30x4

Slide Adjust Device

HP

Electrical driving

Air Pressure

kg/cm2

6

6

6

Presses Dimension

mm

1750x2500x3900

2080x2895x4470

2100x2925x4550

Presses Weight

Ton

25.3

37

42

Presses Precision



GB(JIS)1 class

GB(JIS)1 class

GB(JIS)1 class

Die Cushion Capacity

Ton

14

14

14

Stroke

mm

100

100

100

Die Cushion Effective Area

mm2

710x480

810x480

810x480
