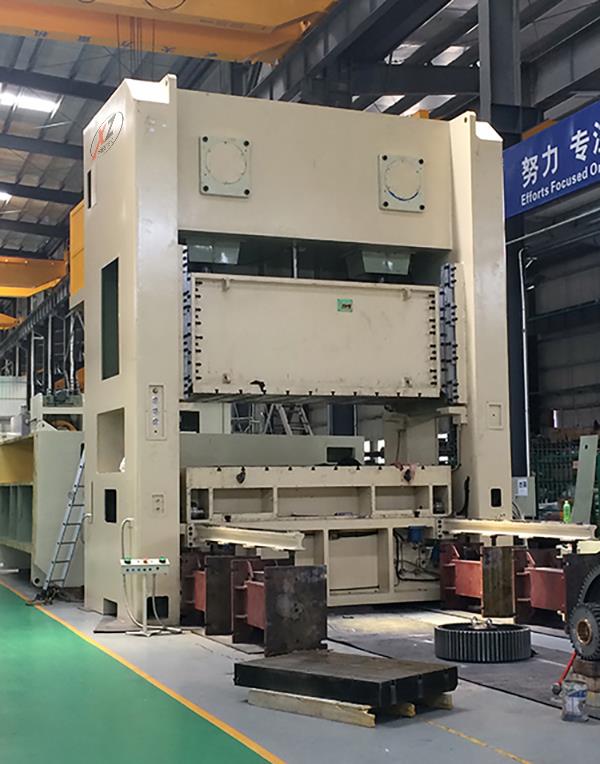

XPE Series Double-crank Press 160ton~600ton
XPE Series Double-crank Press 160ton~600ton
  • Details
  • Parameter
  • Images

Video Link:



https://www.youtube.com/watch?v=qCpx1fwfmac

https://www.youtube.com/watch?v=ctBiJ5Eg4wQ

https://www.youtube.com/watch?v=ycV-8uaP9mE

https://www.youtube.com/watch?v=IqBnZOjd2mQ



Product Features:

■ With high rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.

■ Machine adopts high-alloy-steel, two-bent-axle, and two-wide work center, to optimize design.

■ In order to guarantee relative stationarity of machine operation, it is equip with two balancers.

■ Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.

■ Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.

■ Adopt highly sensitive and reliable clutch/brake and internationally advanced duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.

■ Machine’s structural design shall be reasonable, for the convenience of realizing automatic production, reducing cost, and improving efficiency.

■ Possess advanced design concepts, low noise, low consumption, and energy saving.



Standard Configuration:

Dry clutch brake

Standard operating system of xieduan

Operation Method Choice/inch stroke /safe journey/continuation of operating mode

Oil pressure overload protection device

Over-run safety device

Duplex magnetic valve

Misfeed detection device

Electric slider adjusting device

Digital moulding-height indicator (unit: 0.1 mm)

Electric butter lubricating device

Accumulative counter (6 digits)

Pre-determined counter (6 digits)

Maintenance counter (6 digits)

Service Life counter (6 digits)

Electronic rotary cam switch (6 connections)

Air-blast device 1/2" primary circuit

Air source connector 1/2" secondary circuit

Error inspection socket

Power socket (only apply to single-phase 110V power)



Optional Configuration:

Wet clutch brake

Die cushion device

Vs variable-speed motor

Touch-screen device

Photo-electric safety device

Knock-out device on Ram

Main motor inversion device

Foot switch

Safety dog and safety latch

T-type two-hand button operating platform

Inspection variable-connection magnetic valve

Anti-vibration mechanical foot

Quick Die Change Device

Upper die clamper

Lower die clamper

Die lifter

Mould-shift arm

Basic bolt and soleplate

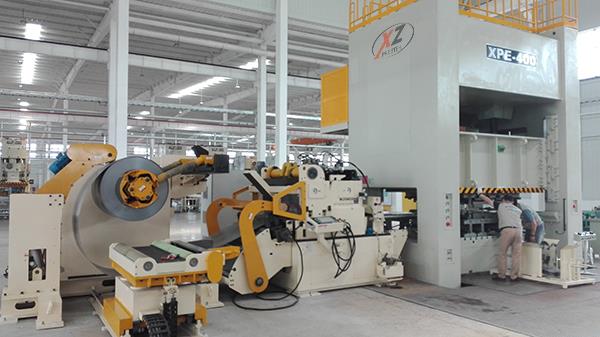

Automatic feeder device

Three-in-one NC straightening feeder

NC Servo Roll feeder

Two-in-one feeder and straightening machine

Leveller



* Provide Customized Personalized Service

Name

Unit

XPE-160

XPE-200

XPE-250

Model



S

H

S

H

S

H

Capacity

Ton

160

200

250

Rated Tonnage Point

mm

6

3

6

3

7

3

Stroke

mm

180

130

250

150

280

170

Stroke per Minute

s.p.m

30-55

40-85

20-50

35-70

20-40

30-60

Die Height

mm

450

400

500

450

550

450

Slide Adjustment

mm

100

120

120

Slide Area

mm

1600x650

1850 x750

2300x900

Bolster Area

mm

1800 x760

2200x940

2500 x1000

Side Opening

mm

700 x450

900x600

900x600

Main Motor

KwxP

15x4

18.5x4

22 x 4

Slide Adjust Device

KwxP

1x4

2x4

2x4

Air Pressure

kg/cm2

6

6

6

Presses Precision



GB(JIS)1 class

GB(JIS)1 class

GB(JIS)1 class

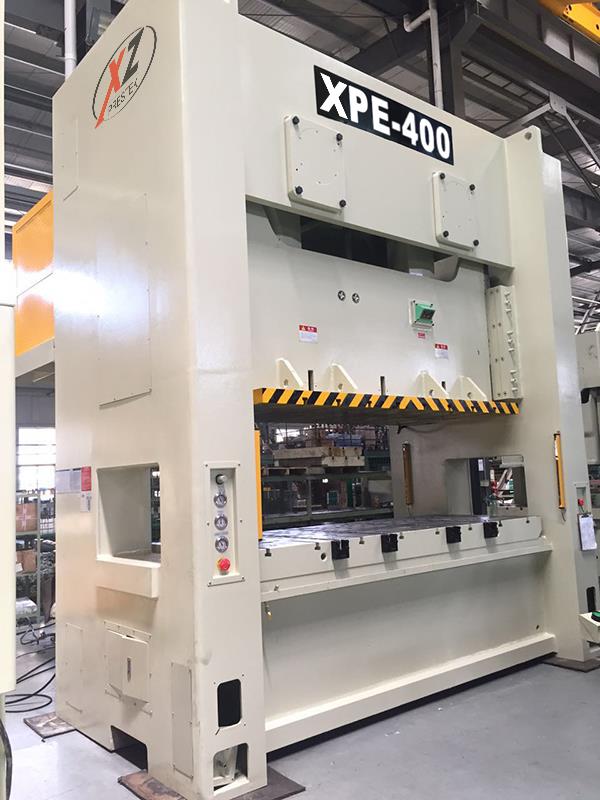

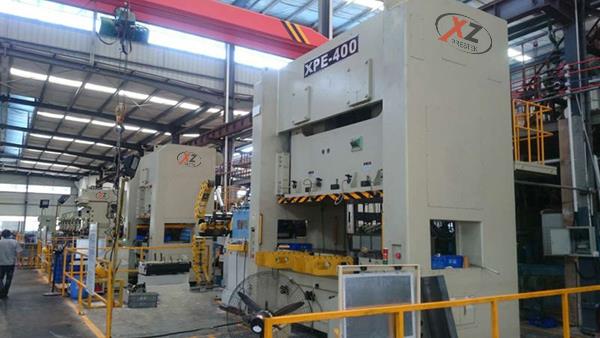

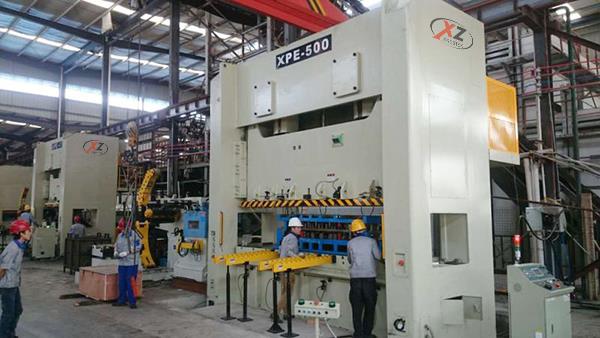

 XPE-300ton--600ton

Name

Unit

XPE-300

XPE-400

XPE-500

XPE-600

Model



S

H

S

H

S

H

S

H

Capacity

Ton

300

400

500

600

Rated Tonnage Point

mm

7

3

7

3

10

6

10

6

Stroke

mm

300

170

300

170

300

180

300

180

Stroke per Minute

s.p.m

20-35

30-50

20-30

20-40

18-25

20-30

15-25

20-30

Die Height

mm

550

450

550

450

580

480

600

500

Slide Adjustment

mm

120

120

120

120

Slide Area

mm

2300x900

A:2300x1000

2900x1000

3100x1100

B:2400x1000

C:2800x1000

Bolster Area

mm

2500x1000

A:2500x1000

3300x1200

3500x1200

B:2800x1000

C:3200x1000

Side Opening

mm

900x600

900x600

1000x750

1100x750

Main Motor

KwxP

30x4

37x4

45x4

55x4

Slide Adjust Device

KwxP

2x4

2x4

3x4

3x4

Air Pressure

kg/cm2

6

6

6

6

Presses Precision



GB(JIS)1 class

GB(JIS)1 class

GB(JIS)1 class

GB(JIS)1 class
