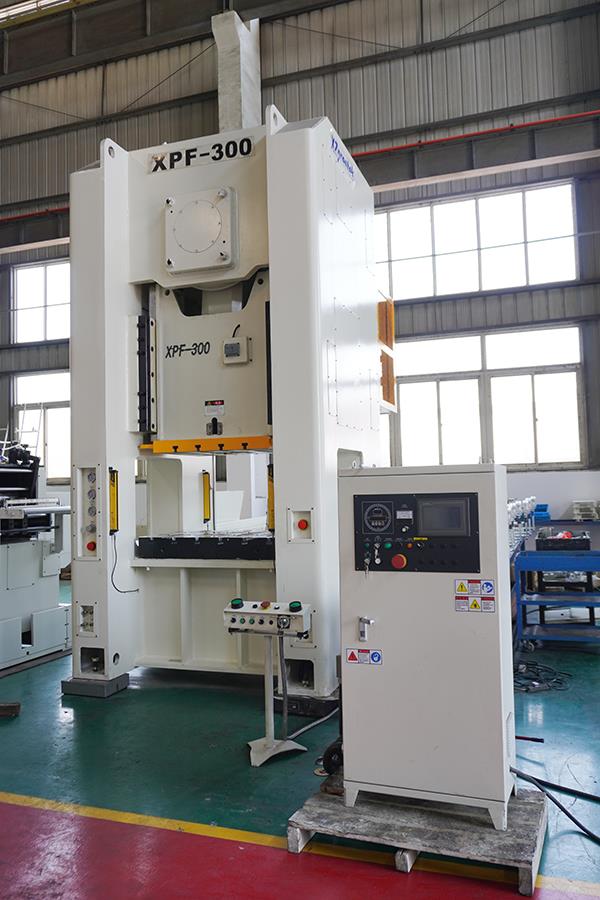

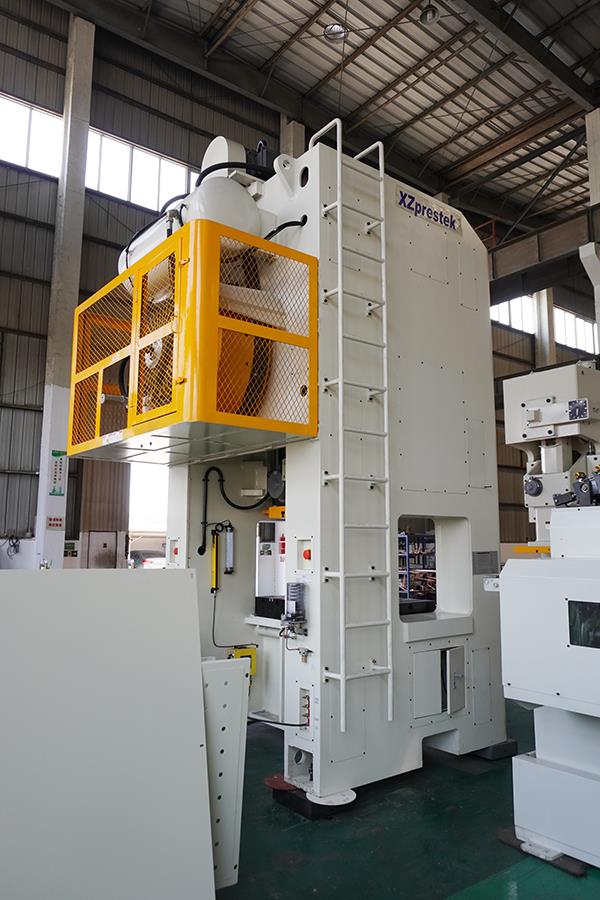

XPF Series Single-crank Press 110ton~600ton
XPF Series Single-crank Press 110ton~600ton
  • Details
  • Parameter
  • Images

Video Link:


https://www.youtube.com/watch?v=4h4MdXWJO2I

https://www.youtube.com/watch?v=fhcScBOd4EE

https://www.youtube.com/watch?v=763I3r4TVtY



Product Features

■ Mix European, American, and Japanese advanced technologies, adopt functional structure CAE dynamic simulation optimization design

■ High-rigidity lathe bed with high-quality steel profiling welding or cast-in-block casting part tempering process or vibration stress processing.

■ High-standard fabrication processing of hard chrome plating/nitriding/grinding for key parts such as gears and bent axles ,and etc.

■ Adopt high-level configurations such as high-performance controllers/drive parts/electromagnetic clutches/steam-driven elements and bearings

■ International Technical grade of stamping equipment and inspection of machine index.

■ High-response multi-functional superposition expansion/high-quality industrial control processor

■ High-memory module/individual design franchised software compilation

■ High-compatibility multi-axial variable speed drive/automation equipment onboard expansion

■ High-intelligent human-computer interface/high-frequency real-time control/Ethernet & USB interface



Standard Configuration

■ Hydraulic overload protector

■ Electric slider adjusting device

■ Digital moulding-height indicator (unit: 0.1 mm)

■ Slider and mould balancing device

■ Rotary cam switch

■ Crank angle indicator

■ Circulation centralization lubrication oil feeding device

■ Electromagnetic stroke counter

■ Over-run safety device

■ Programmable controller

■ Moveable T-type operating platform

■ Air source connector

■ Independent electric control cabinet

■ Maintenance tool and tool box



Optional Configuration

■ Die cushion

■ Upper slider knock out device

■ Die Light

■ Main motor inversion device

■ Photo-electric safety device

■ Safety groove and safety pin

■ Pre-set counter (6 digits)

■ Loading inspection device

■ Misfeed detection device

■ Frequency converter

■ Basic bolt and soleplate

■ Anti-vibration foot

■ Safety shelf and safety ladder

■ Power socket

■ Quick die change device



* Provide Customized Personalized Service

Name

Unit

XPF-110

XPF-160

XPF-200

XPF-260

Model



V

H

V

H

V

H

V

H

Capacity

ton

110

160

200

260

Rated Tonnage Point

mm

6

3

6

3

6

3

7

3.5

Stroke

mm

180

80

200

90

200

100

250

150

Speed Changing

s.p.m

30~60

60~90

20~50

40~70

20~50

50~70

20~40

40~50

Stable Speed

s.p.m

50

35

35

30

Die Height

mm

360

410

460

510

460

510

500

550

Slide Adjustment

mm

80

100

110

120

Slide Area

mm

1000x550x70

1100x600x90

1200x650x90

1300x700x100

Bolster Area

mm

1100x600x110

1200x800x140

1300x820x160

1400x840x180

Side Opening

mm

700x500

800x600

800x600

800x600

Main Moter

kw x p

11x4

15x4

18x4

22x4

Slide Adjusting Moter

kw x p

0.4x4

0.75x4

0.75x4

1.5x4

Air Pressure

kg/cm2

6

6

6

6

6

6

6

6

Presses  Precision



GB/T23280-2009 [JIS1]

 XPF-300ton--600ton

Name

Unit

XPF-300

XPF-400

XPF-500

XPF-600

Model



V

H

V

H

V

V

Capacity

ton

300

400

500

600

Rated Tonnage Point

mm

7

3.5

9

4.5

10

13

Stroke

mm

300

170

300

200

250

250

Speed Changing

s.p.m

20~40

35~50

15~25

20~35

20~30

15~20

Stable Speed

s.p.m

30

20

20

20

Die Height

mm

550

615

550

600

550

550

Slide Adjustment

mm

120

120

120

120

Slide Area

mm

1400x800x110

1500x850x110

1400x800

1500x1200

Bolster Area

mm

1500x950x200

1600x1000x200

1500x1000

1700x1300

Side Opening

mm

900x600

1000x750

1000x800

1000x900

Main Moter

kw x p

30x4

40x4

55x4

75x4

Slide Adjusting Moter

kw x p

1.5x4

2.2x4

3x4

3x4

Air Pressure

kg/cm2

6

6

6

6

6

6

Presses  Precision



GB/T23280-2009 [JIS1]
