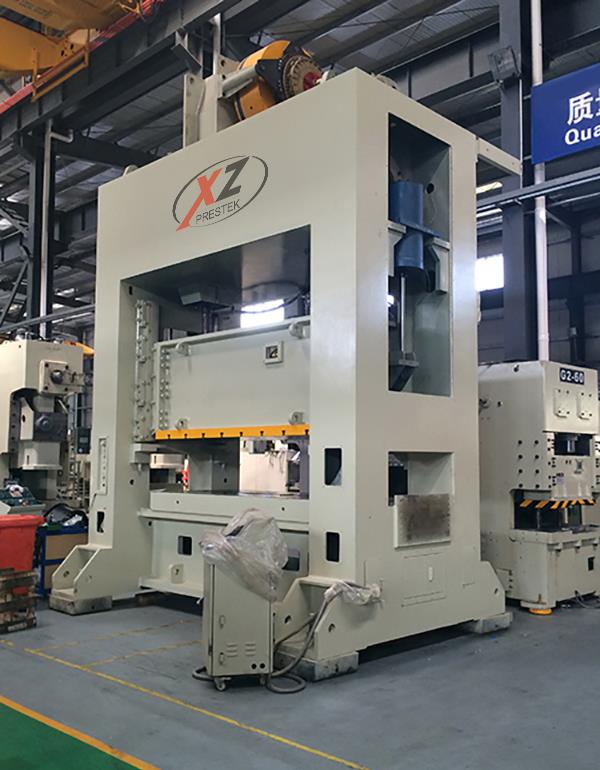

XTD Series Double-crank Straight Side Press 400ton~1200ton
XTD Series Double-crank Straight Side Press 400ton~1200ton
  • Details
  • Parameter
  • Images

Video Link:

https://www.youtube.com/watch?v=z3IRboCHsCI

https://www.youtube.com/watch?v=LCd28CwCuKo

https://www.youtube.com/watch?v=9hPVN919lK8



Product Features :

■ Slider with Octahedral longer guide rails to guarantee operation precision.

■ Hydraulic overload protection device stop the operation emergency when overload ,convenient for application;

■ PLC electric interlocking control , with functions of Emergency stop, inch, single-stroke, and continuous operation;

■ Dry pneumatic friction clutch is small in noise, large in clutching torque, small in braking angle, and convenient for maintenance;

■ Body is closed structure, including beams, stand columns, and bases, pre-tighten by four tie bolts, with good rigidity .



Standard Accessories :

■ Hydraulic overload protector

■ Electric slider adjusting device

■ Independent electrical control cabinet

■ Movable Operating Platform

■ Digital mould-height indicator

■ Circulation centralization lubrication oil feeding device

■ Power socket

■ Over-run safety device

■ Misfeed detection device

■ Pre-determined counter (6 digits)

■ Air-blast device 1/2" primary circuit

■ Air source connector 1/2" secondary circuit

■ Frequency converter



Optional Accessories :

■ Die Cushion device

■ Photo-electric safety device

■ Knock out device on the slider

■ Safety block and safety latch

■ Anti-vibration device

■ Die area lighting

■ Quick die change device

■ Movable working table

■ Automatic feeding system

* Provide Customized Personalized Service

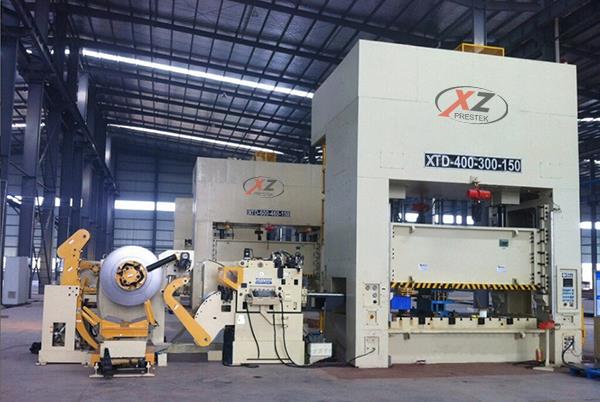

XTD-400ton--600ton

Name

Unit

XTD-400

XTD-500

XTD-600

Model



S

H

S

H

S

H

Capacity

Ton

400

500

600

Rated Tonnage Point

mm

13

7

13

7

13

9

Stroke

mm

400

300

400

300

400

300

Speed Changing

s.p.m

15-25

35-40

15-25

25-40

15-25

20-30

Die Height

mm

600

650

650

700

650

700

Slide Adjustment

mm

150

200

200

Slide Area

mm

2800x1300

3100x1400

3600x1400

Bolster Area

mm

2800x1400

3100x1500

3600x1500

Side Opening

mm

850x600

950x650

1000x700

Die Cushion Capacity

Ton

60

70

80

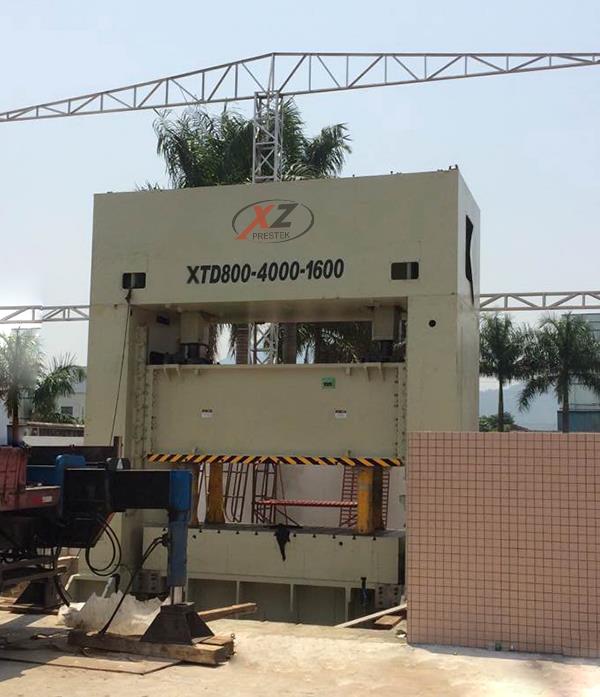

 XTD-800ton--1200ton

Name

Unit

XTD-800

XTD-1000

XTD-1200

Model



S

H

S

H

S

H

Capacity

Ton

800

1000

1200

Rated Tonnage Point

mm

13

9

13

9

13

9

Stroke

mm

400

300

400

300

400

300

Speed Changing

s.p.m

15-25

20-30

15-25

20-30

15-25

20-30

Die Heigh

mm

700

750

1000

1050

1000

1050

Slide Adjustment

mm

250

250

250

Slide Area

mm

3800x1600

4600x1800

5000x1800

Bolster Area

mm

3800x1600

4600x1800

5000x1800

Side Opening

mm

1100x800

1200x900

1200x900

Die Cushion Capacity

Ton

80

80

80
