Video Link:
https://www.youtube.com/watch?v=seAGcqJxf7U
Product Features :
■ Control machine tools' actions with the use of rotary encoder and adopt human-computer interface system, for the convenience of human-computer communication.
■ Hydraulic Locking for rod connecting enhance the precision of bottom dead center.
■ With high performance suitable for motor rotor punching.
Standard Configuration :
■ Electric moulding-height adjustment
■ Moulding-height display precision: 0.01mm
■ Inch positioning device
■ Three-group of batch control
■ Two-group of wrong inspection
■ continuous stroke-action and single stroke-action tools with 0° and 90° locate function
■ Main motor reversible device
■ Oil-pressure slider fixed-locking device
■ Independent electric control box
■ Main motor invert control
Optional Configuration :
■ Bottom dead center precision detector
■ Quick die-clamping device
■ High-speed feeder
■ Double-end oil-pressure uncoiler
■ Leveling discharging machine
■ Shockproof device
■ Stamping controller
* Provide Customized Personalized Service
|
|
|
Name |
Unit |

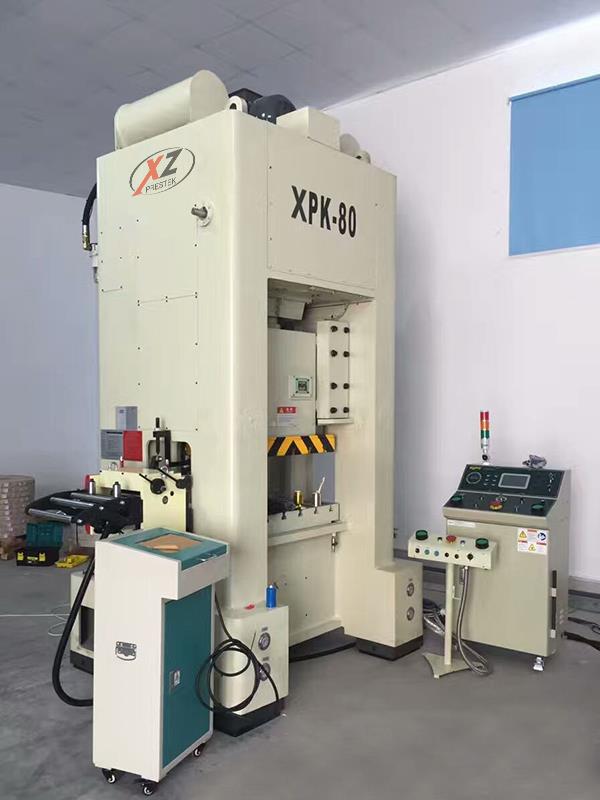

XPK-80 |
XPK-125 |
XPK-160 |
XPK-200 |
|
|
Nominal Force |
|
80 TON |
125 TON |
160 TON |
200TON |
|
|
Rated tonnage Point |
mm |
2 |
3 |
3 |
3 |
|
|
Stroke |
mm |
30 |
20 |
30 |
30 |
30 |
|
Speed Changing |
s.p.m |
160-280 |
160-280 |
160-240 |
160-220 |
150-200 |
|
Distance Between the Column |
mm |
380x920 |
450x1160 |
520x1360 |
550x1320 |
|
|
Slide Area |
mm |
800x450 |
1000x550 |
1200x600 |
1200x600 |
|
|
Bolster Area |
mm |
900x500 |
1100x600 |
1300x700 |
1300x800 |
|
|
Bolster Hole |
mm |
450x150 |
600x150 |
600x250 |
600x250 |
|
|
Die height Adjustment |
mm |
310-360 |
350-400 |
350-400 |
350-400 |
|
|
Main Motor |
kwxp |
11 |
18.5 |
22 |
30 |
|
